Manufactured and mobile homes across California face catastrophic shifting and collapse during earthquakes because their steel chassis frames rest on unanchored screw jacks or dry-stacked concrete masonry unit (CMU) pier blocks rather than continuous concrete foundations. In Southern California mobile home parks and private parcels, horizontal ground acceleration easily displaces structural piers, dropping the home to the ground and severing rigid gas, electric, and sewer connections. To protect homeowners, the state offers grant funding up to $3,000 through the CRMP Earthquake Brace + Bolt for Mobilehomes (EMR) Program. Installing certified Earthquake-Resistant Bracing Systems (ERBS) conforming to California Department of Housing and Community Development (HCD Title 25) standards, paired with mandatory precision laser releveling, stabilizes the structural chassis against bidirectional seismic forces.
The Unique Seismic Hazards of Manufactured Home Foundations
Unlike site-built homes anchored to poured concrete footings, manufactured homes are engineered around a structural steel undercarriage (longitudinal I-beams). On typical installations in Los Angeles, Riverside, San Bernardino, and Orange counties, the chassis simply balances atop independent support columns:
- Dry-Stacked CMU Piers: Hollow cinder blocks stacked without mortar, easily tipped over during harmonic earth movement.
- Telescoping Screw Jacks: Unanchored steel stands resting on precast concrete pads or plywood sub-bases that slide across soil during lateral acceleration.
- Utility Severance Hazards: When a home falls off its piers, rigid natural gas supply lines shear at the meter valve, creating an immediate fire hazard that accounts for over 60% of post-earthquake mobile home park destructions.
California CRMP EMR Grant Program ($3,000)
The California Residential Mitigation Program (CRMP)—administered jointly by the California Earthquake Authority (CEA) and the California Governor's Office of Emergency Services (Cal OES)—created the EMR (Earthquake Brace + Bolt for Mobilehomes) Grant to subsidize seismic safety upgrades for manufactured homes:
- Grant Subsidy: Up to $3,000 toward qualifying HCD-approved ERBS hardware, building permit filing, and licensed contractor labor.
- Property Qualification: Owner-occupied manufactured homes situated in designated high-seismic ZIP codes across California.
- Regulatory Compliance: All installations must be completed by a licensed contractor registered with the Contractors State License Board (CSLB) and permitted through the California HCD or local building enforcement agency.
HCD Title 25 Certified ERBS Bracing Systems

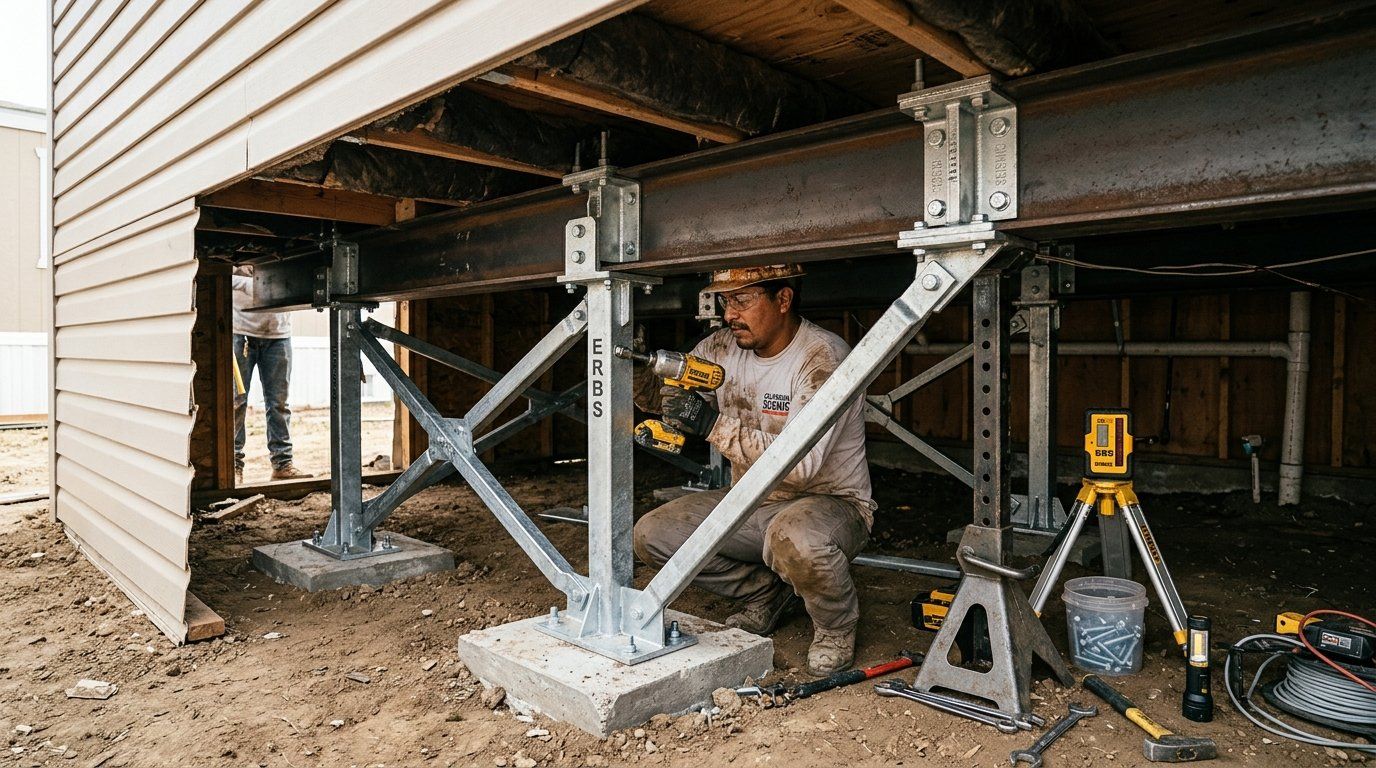

Under California HCD Title 25 regulations, an Earthquake-Resistant Bracing System (ERBS) consists of heavy-gauge steel diagonal bracing struts securely clamped to the primary longitudinal chassis I-beams and anchored into structural ground pads. An approved ERBS system provides:
- Transverse Bracing: Diagonal steel arms that prevent side-to-side racking along the width of the manufactured unit.
- Longitudinal Bracing: Struts aligned with the home's length to counteract forward and backward surge forces.
- Vertical Load Resistance: Heavy-duty load-bearing stands that prevent downward displacement if adjacent pier blocks shift.
Foundation & Bracing Systems Comparison Table
| Foundation / Bracing System | Est. Cost (2026 LA/OC) | Seismic Resistance | HCD Title 25 Compliant | CRMP EMR Grant Eligible |
|---|---|---|---|---|
| Unanchored Pier Blocks / Jacks | $0 (Existing Standard) | Extremely Vulnerable (High Tip Risk) | Non-Seismic Rated | No |
| Tie-Down Wind Straps Only | $1,500 – $2,800 | Moderate Wind Only (Low Lateral Grip) | Wind Only (Not Seismic) | No |
| HCD-Certified ERBS System | $2,800 – $4,500 | Superior (Full Bidirectional Bracing) | Fully Compliant (HCD Certified) | Yes (Up to $3,000) |
| Permanent Engineered Foundation (SPA 185) | $8,500 – $18,000+ | Maximum (Ties to Poured Concrete Footings) | Classifies as Real Property (433A) | Grant Compatible / Title Conversion |
Contractor's Insider Tip: Mandatory Precision Laser Releveling
As Dmitrii from SkillSee always explains: "Never install seismic bracing on an unlevel home." Soil moisture fluctuations in Southern California cause support piers to settle unevenly over the years, inducing torsional twist and subfloor sagging in the steel frame. If you bolt rigid HCD-certified ERBS brackets onto a twisted chassis, you permanently lock that structural deformation into place. SkillSee always performs high-precision water-level or multi-point laser releveling (re-shimming each pier) before locking down the ERBS seismic assemblies.
Frequently Asked Questions
Q: How much grant funding is available under the California CRMP EMR program for mobile homes?
A: The California Residential Mitigation Program (CRMP) Earthquake Brace + Bolt for Mobilehomes (EMR) grant provides up to $3,000 to cover certified ERBS hardware, HCD permit fees, and installation by a licensed California contractor.
Q: What is an HCD Title 25 certified Earthquake-Resistant Bracing System (ERBS)?
A: An ERBS is a state-tested structural steel bracing system certified under California Department of Housing and Community Development (HCD) Title 25 standards. It clamps onto the mobile home steel I-beam chassis and anchors into ground footings with diagonal struts to resist bidirectional seismic movement.
Q: Why is laser releveling mandatory before installing mobile home seismic bracing?
A: Over time, soil settlement causes support piers to sink unevenly, twisting the steel chassis. Laser releveling restores the frame to true horizontal alignment prior to mounting rigid seismic braces, preventing structural stress, floor warping, and binding doors from being permanently locked into the chassis.
